Olympic Kilns

Olympic Kiln HB86E

€1.20195
Taxes, discounts and shipping calculated at checkout.

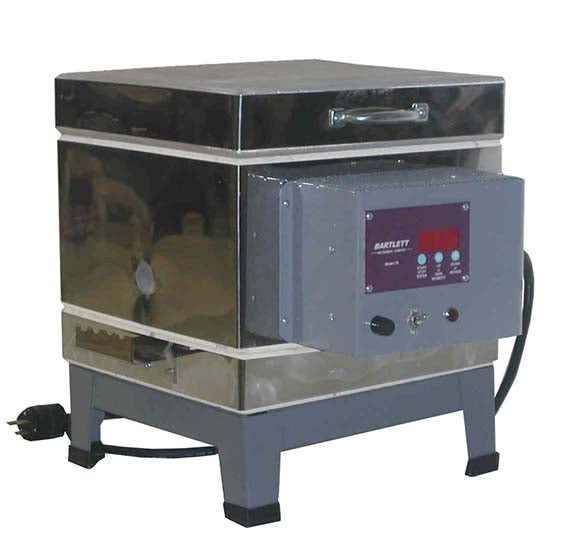

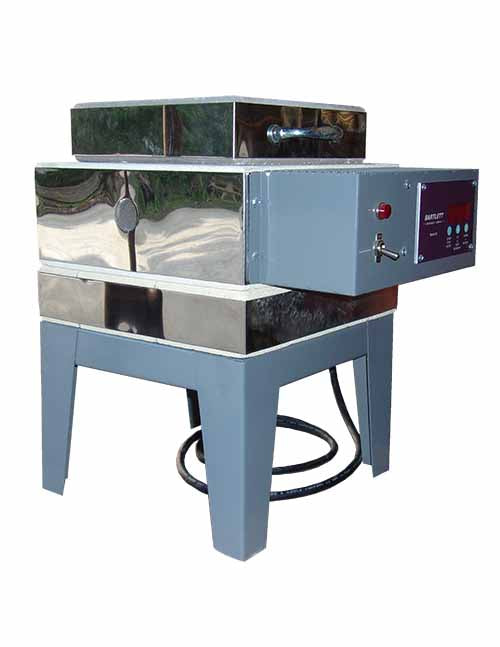

Hot Box 86 equipped with electronic controller Model – HB86E 120 volt

Inside dimensions: 8″ x 8″ wide x 6.5″ deep, fires to cone 10/2350°F
Inside dimensions: 8″ x 8″ wide x 11″ deep, with optional bead or blank collar fires to 2000° F with collar.

This electric model comes with a stand, two peephole plugs, and an instruction manual.

One-year warranty or cone 10 models.

120-volt models come equipped with a pilot light, metal stand, stainless steel jacket, and the Bartlett KilnStar digital controller.

Other options available are upgrading to the Genesis touchscreen controller, adding a blank or bead collar, and/or a fiber bottom for vitrigraph.

Furniture Kits for 120-volt models provide 2-3 layers of shelving for stacking ware, assorted small square posts, ceramic paper, and a one-pound bag of kiln wash.  Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model HB86E Wiring Specifications
Equipped with Lid Lift Assist N/A 120 Volts
Inside Chamber Dimensions w x d x h (inches) 8 x 8 x 6.5 15 Amps
Cubic Feet  .24 1800 Watts
Outside Dimensions with Stand or Frame w x d x h (inches)  17.5 x 13 x 16.5 20 Amp Breaker Required
Brick Thickness 2.5” Plug Configuration: NEMA 5-15
Maximum Temperature Cone 10 – 2350°F/1288°C

2000°F/1093°C with Collar

 Copper Wire Size: #12, #10 if the circuit is longer than 40 ft
Est Ship Wt. 55 lbs.
