Olympic FL31E Kiln

$21,33500
Taxes, discounts and shipping calculated at checkout.

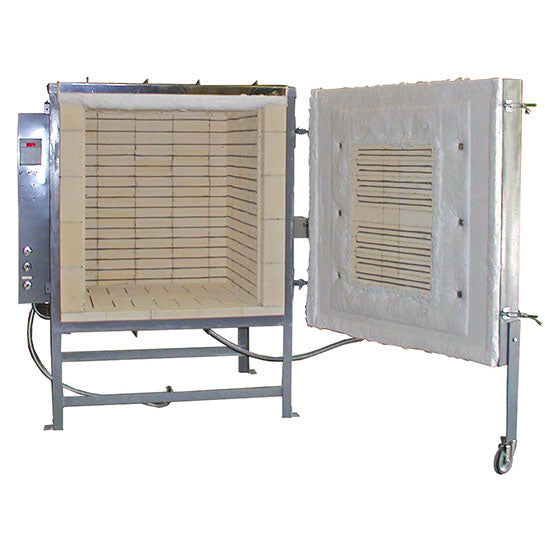

Model – FL31E 240 or 208 volt – Front loading large capacity 31 cubic feet electric kiln

Inside Dimensions: 36″ wide x 36″ deep x 41.5″ high, fires to cone 10/2350°F

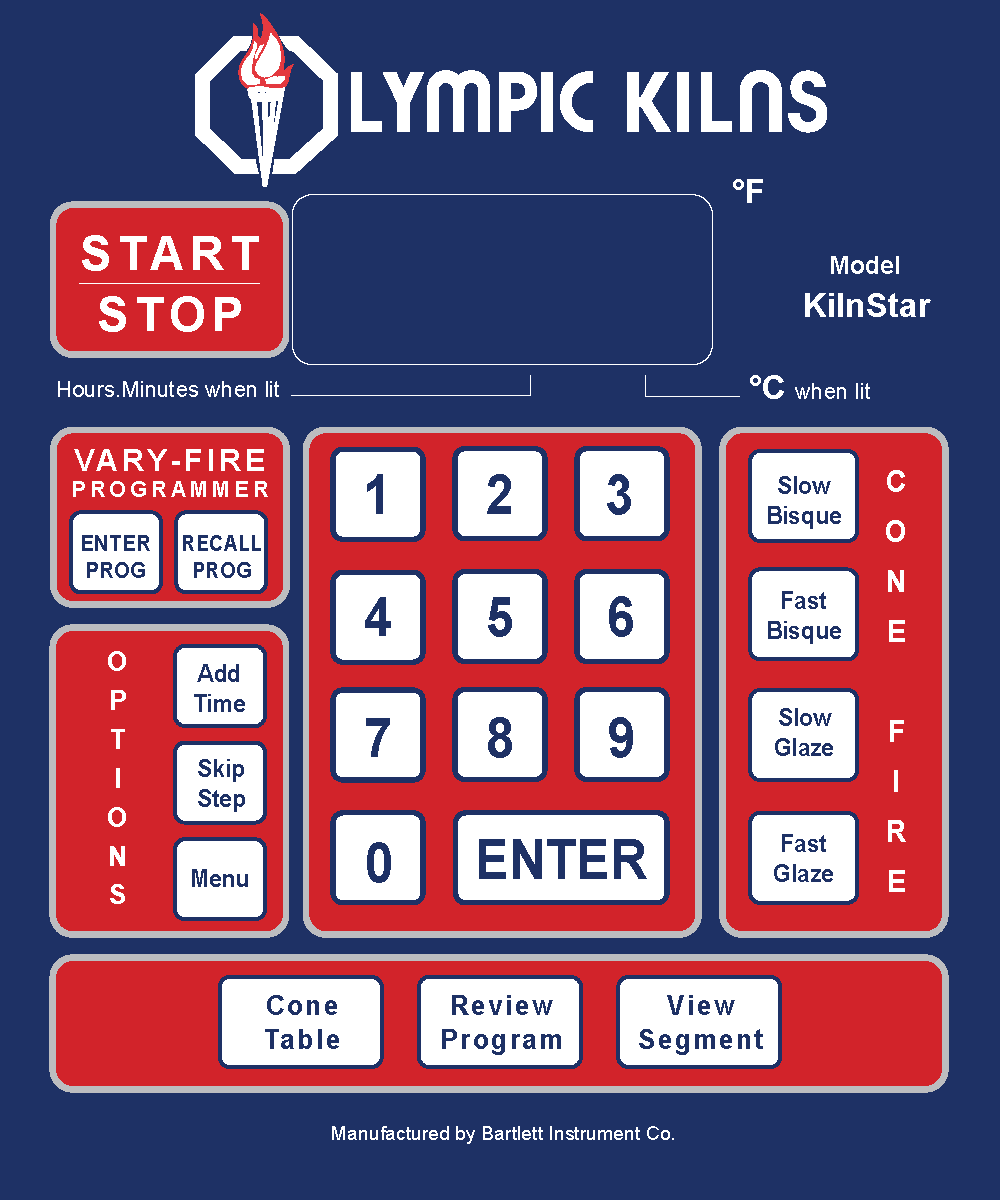

Front-loading large capacity electric models come equipped with a pilot light, welded heavy angle iron frame, stainless steel jacket, and 12 key digital Bartlett KilnStar controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL31E is equipped with its own breaker box for easy access, safety, and lockout.

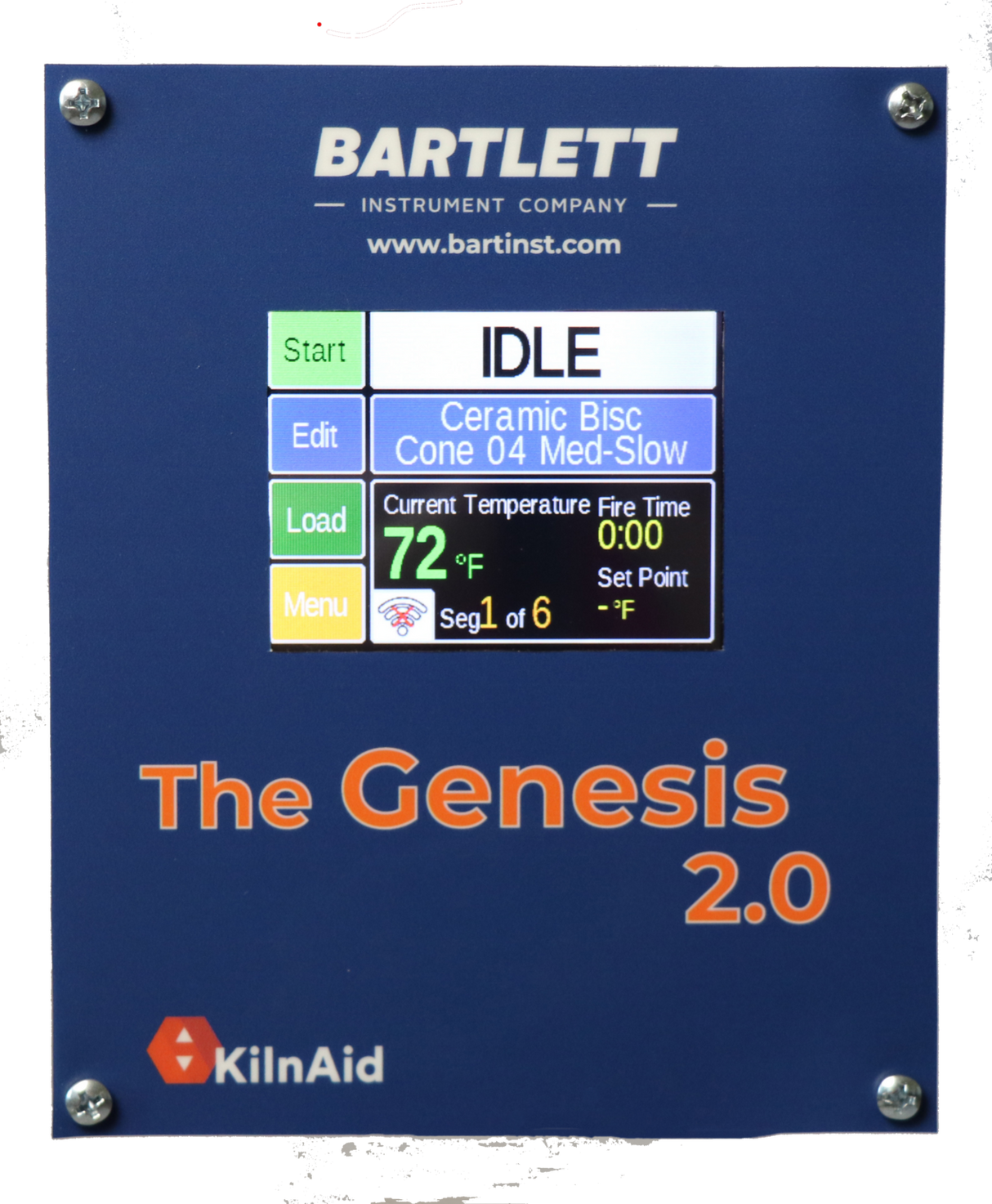

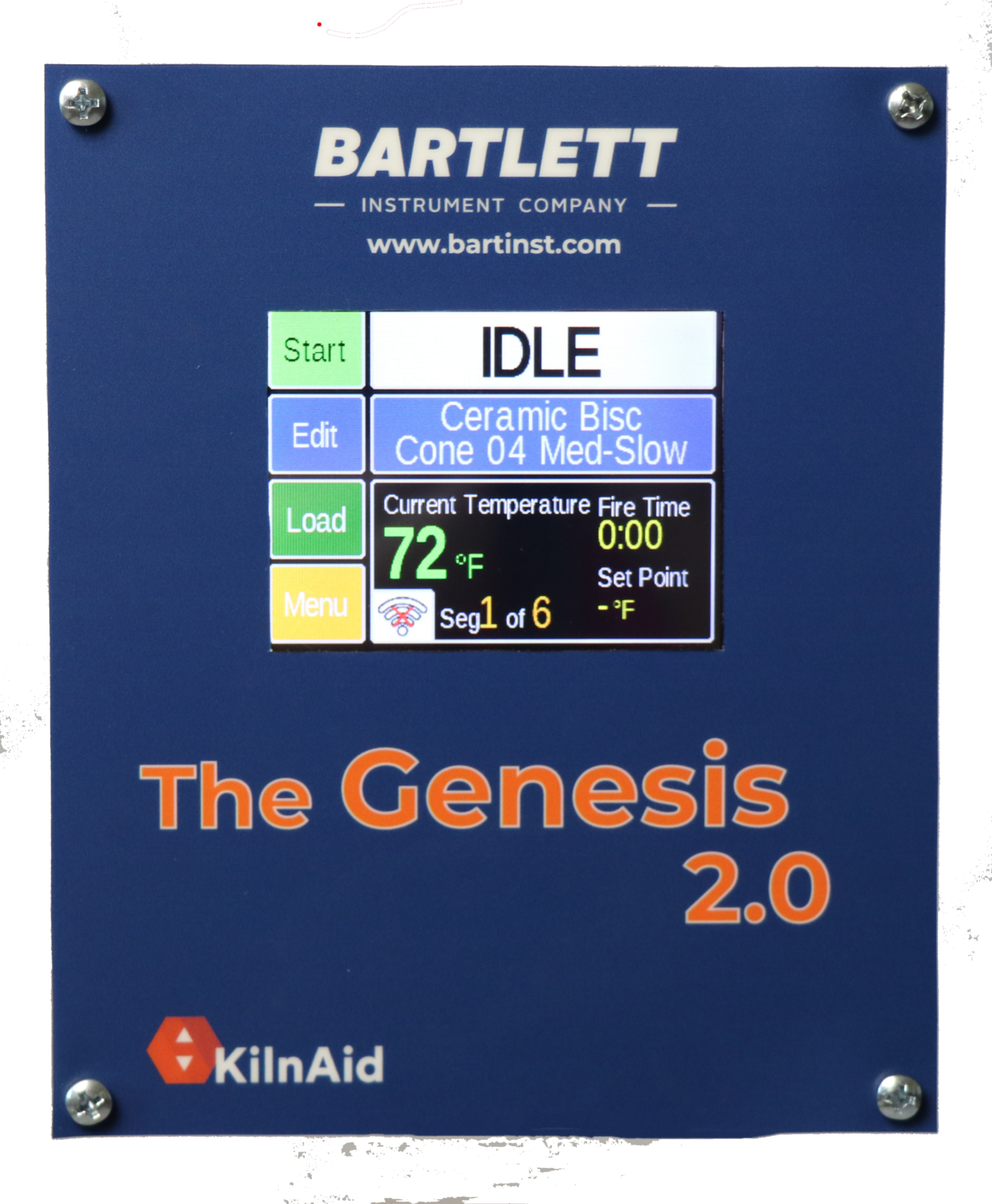

Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, car loading, and much more!

Furniture Kits for Large Capacity Kilns provide 4 layers of shelving, assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model FL31E FL31E Car Kiln Wiring Specifications 1 Phase 3 Phase
Inside Chamber Dimensions w x d x h (inches) 36 x 36 x 41.5 36 x 36 x 41.5 Volts 208 240 208 240
Cubic Feet 31 Amps 115 100 77 67
Outside Dimensions with Stand or Frame w x d x h (inches)  60 x 59 x 72 66 x 71 x 70 Watts 24,000
Brick Thickness  4.5” +1″ Fiber Breaker Required 150 Amp 150 Amp 100 Amp 100 Amp
Maximum Temperature Cone 10 – 2350°F/1288°C Plug Configuration Direct Wired
Est. Shipping Wt.  1,780 lbs.  2,790 lbs. Copper Wire Size #4, #2 if the circuit is longer than 40 ft
