Olympic Kilns

Olympic FL5.5E Kiln

$8,03000
Taxes, discounts and shipping calculated at checkout.

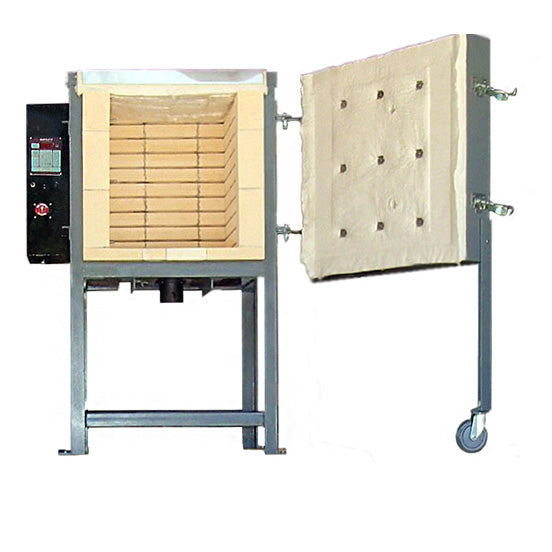

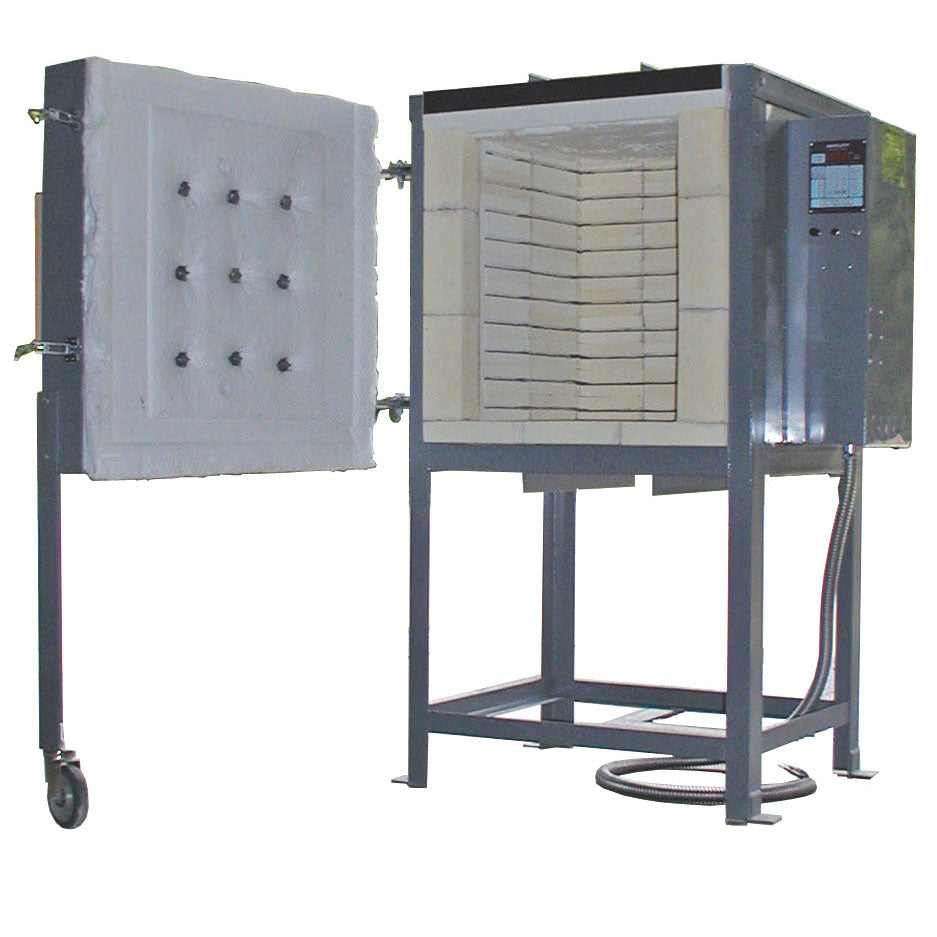

Model – FL5.5E 240 or 208 volt – Front loading production volume 5.5 cubic feet electric kiln

Front-loading large capacity models come equipped with a pilot light, welded heavy angle iron frame, stainless steel jacket, and 12-key digital KilnStar controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL5.5E is equipped with its own breaker box for easy access, safety, and lockout.

Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, and much more!

Furniture Kits for Production Electric Kilns provide 4 layers of shelving, assorted posts, and a one-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model FL5.5E Wiring Specifications 1 Phase 3 Phase
Car Kiln Option Available No Volts 208 240 208 240
Inside Chamber Dimensions w x d x h (inches)  20 x 20 x 24 Amps 40 36 27 24
Cubic Feet 5.5 Watts 8,640
Outside Dimensions with Stand or Frame w x d x h (inches) 42 x 36 x 63 Breaker Required 50 Amp 50 Amp 40 Amp 30 Amp
Brick Thickness 4.5” +1″ Fiber Plug Configuration NEMA 6-50 Direct Wired
Maximum Temperature Cone 10 – 2350°F/1288°C Copper Wire Size #6, #4 if the circuit is longer than 40 ft
Est. Shipping Wt. 750 lbs.
