Olympic Kilns

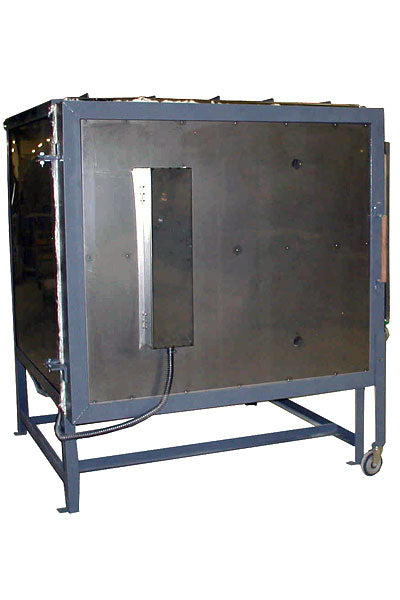

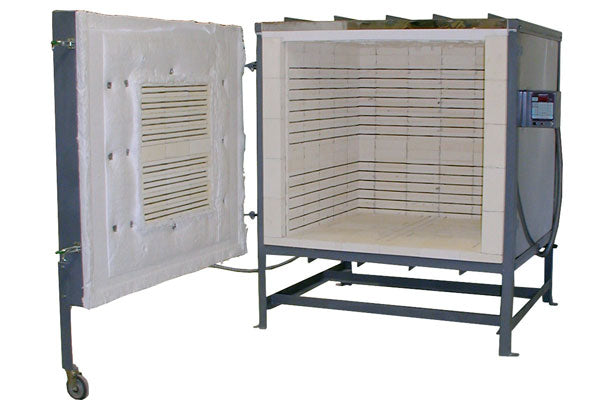

Olympic FL53E Kiln

$29,96000
Taxes, discounts and shipping calculated at checkout.

Model – FL53E 240 or 208 volt – Front loading production volume 53 cubic feet electric car kiln

Inside Dimensions: 46″ wide x 46″ deep x 45″ high, fires to cone 10/2350°F

Front-loading kilns come equipped with a pilot light, welded heavy-angle iron frame, stainless steel jacket, steel rail track, and Bartlett Instrument’s 12-key digital KilnStar controller. The controller provides cone fire and ramp-hold user programs with multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL53E kiln is equipped with its own breaker box for easy access, safety, and lockout.

Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, vent, and much more!

Furniture Kits for Large Capacity Kilns provide 4 layers of shelving, assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model FL53E Kiln Wiring Specifications 1 Phase 3 Phase
Inside Chamber Dimensions w x d x h (inches)  46 x 46 x 45 Volts 208 240 208 240
Cubic Feet  53 Amps 202 175 135 117
Outside Dimensions with Stand or Frame w x d x h (inches) 70 x 75 x 72 Watts 42,000
Brick Thickness  4.5”+1″ Fiber Breaker Required 250 Amp 200 Amp 170 Amp 150 Amp
Maximum Temperature Cone 10 – 2350°F/1288°C Plug Configuration Direct Wired
Est. Shipping Wt. 2,330 lbs. Copper Wire Size #1/0, #2/0 if the circuit is longer than 40 ft
