Olympic Kilns

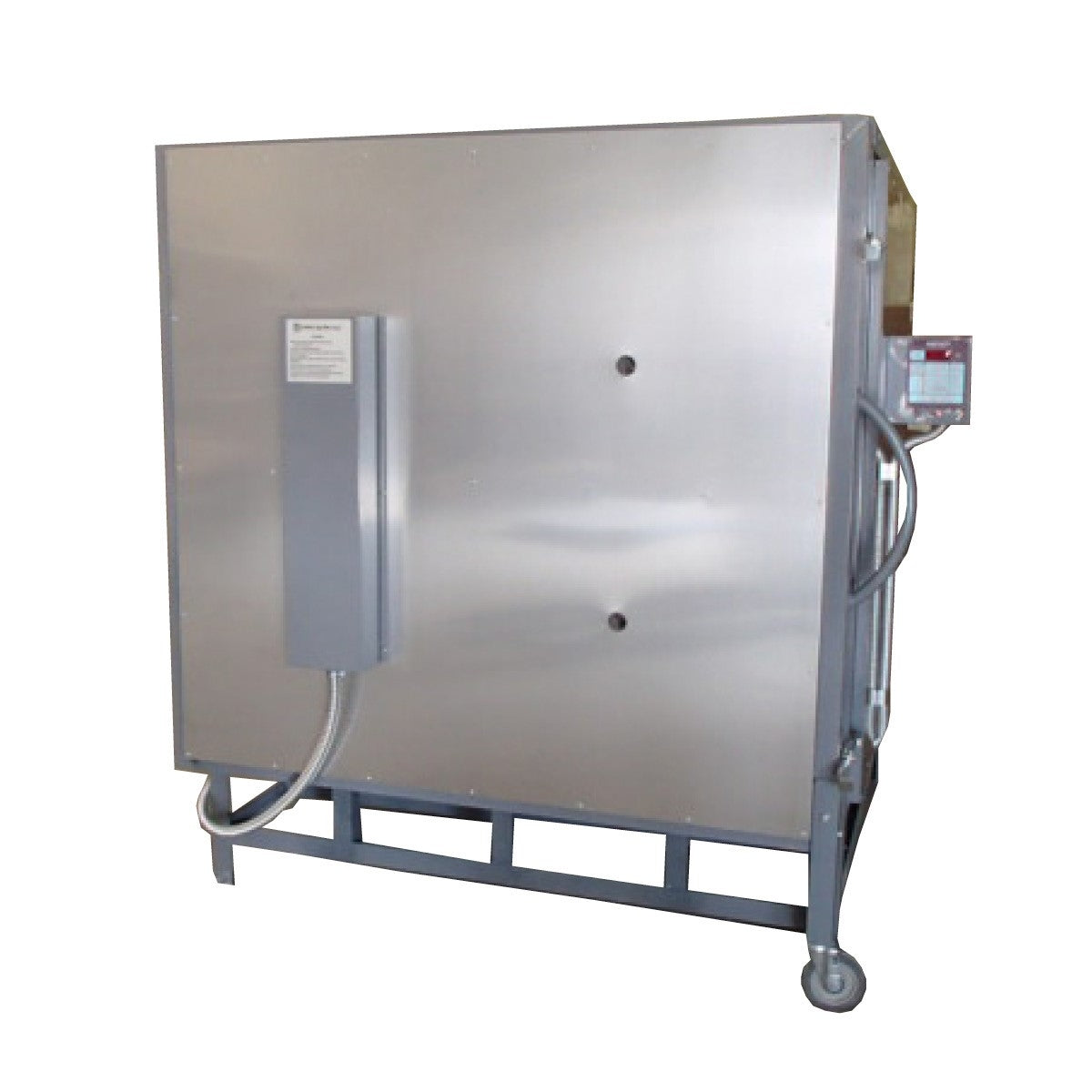

Olympic FL64E Kiln

$33,62500
Taxes, discounts and shipping calculated at checkout.

Model – FL64E 240 or 208 volt – Front loading production volume 64 cubic feet electric kiln

Inside Dimensions: 48″ wide x 48″ deep x 48″ high, fires to cone 10/2350°F

Front-loading large capacity electric models come equipped with pilot light, welded heavy angle iron frame, stainless steel jacket, and 12 key digital Bartlett V6-CF or RTC-1000 controller for more ramp-hold user programs, and multiple features including delay start, preheat, cone offset, skip a step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL64E is equipped with its own breaker box for easy access, safety, and lockout.

Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, car loading, and much more!

Specific Kiln Information

Model FL64E FL64E Car Kiln Wiring Specifications 1 Phase 3 Phase
Inside Chamber Dimensions w x d x h (inches) 48 x 48 x 48 48 x 48 x 48 Volts 208 240 208 240
Cubic Feet 64 Amps 230 200 153 133
Outside Dimensions with Stand or Frame w x d x h (inches) 68 x 70 x 76 70 x 140 x 74 Watts 48,000
Brick Thickness  4.5”+1″ Fiber Breaker Required 300 Amp 250 Amp 200 Amp 170 Amp
Maximum Temperature Cone 10 – 2350°F/1288°C Plug Configuration Direct Wired
Est. Shipping Wt.  2,637  lbs.  3,217 lbs. Copper Wire Size #3/0, #4/0 if the circuit is longer than 40 ft
