1 4
Olympic Kilns

Olympic FL8E Kiln

$8,84500
Taxes, discounts and shipping calculated at checkout.

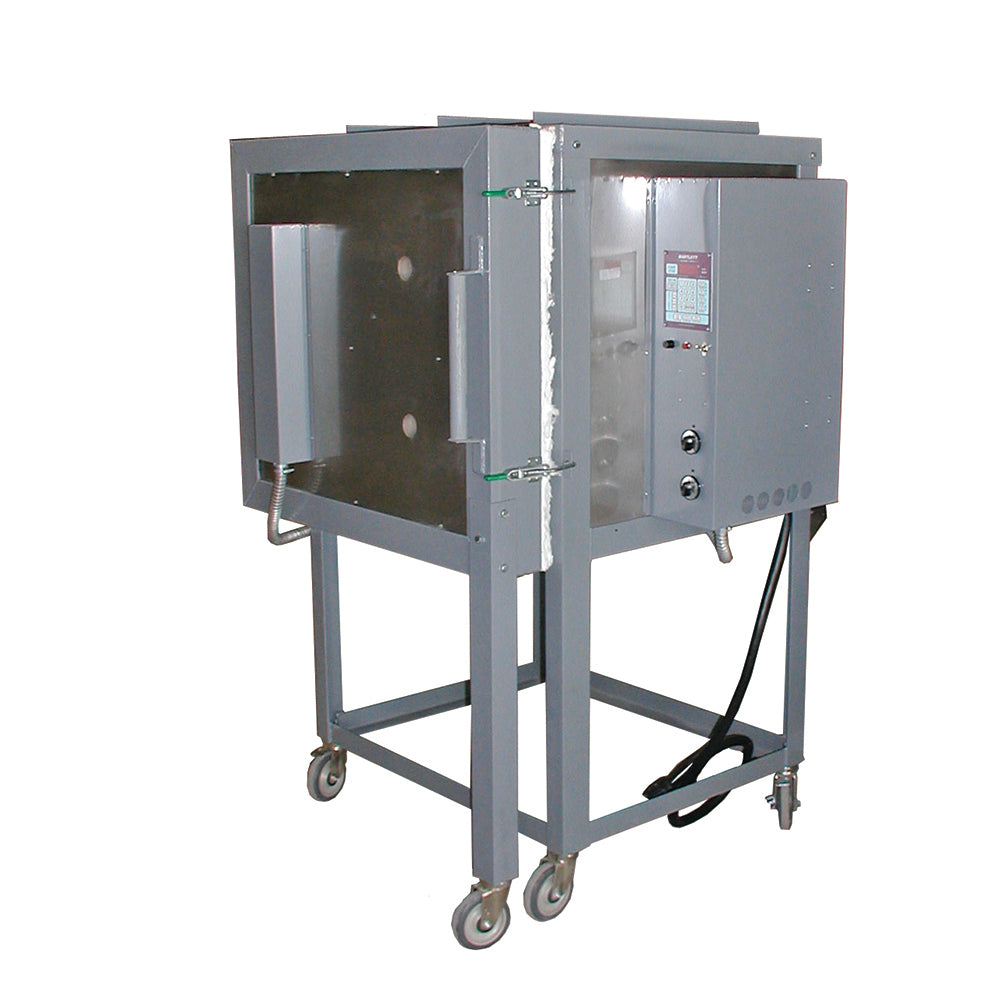

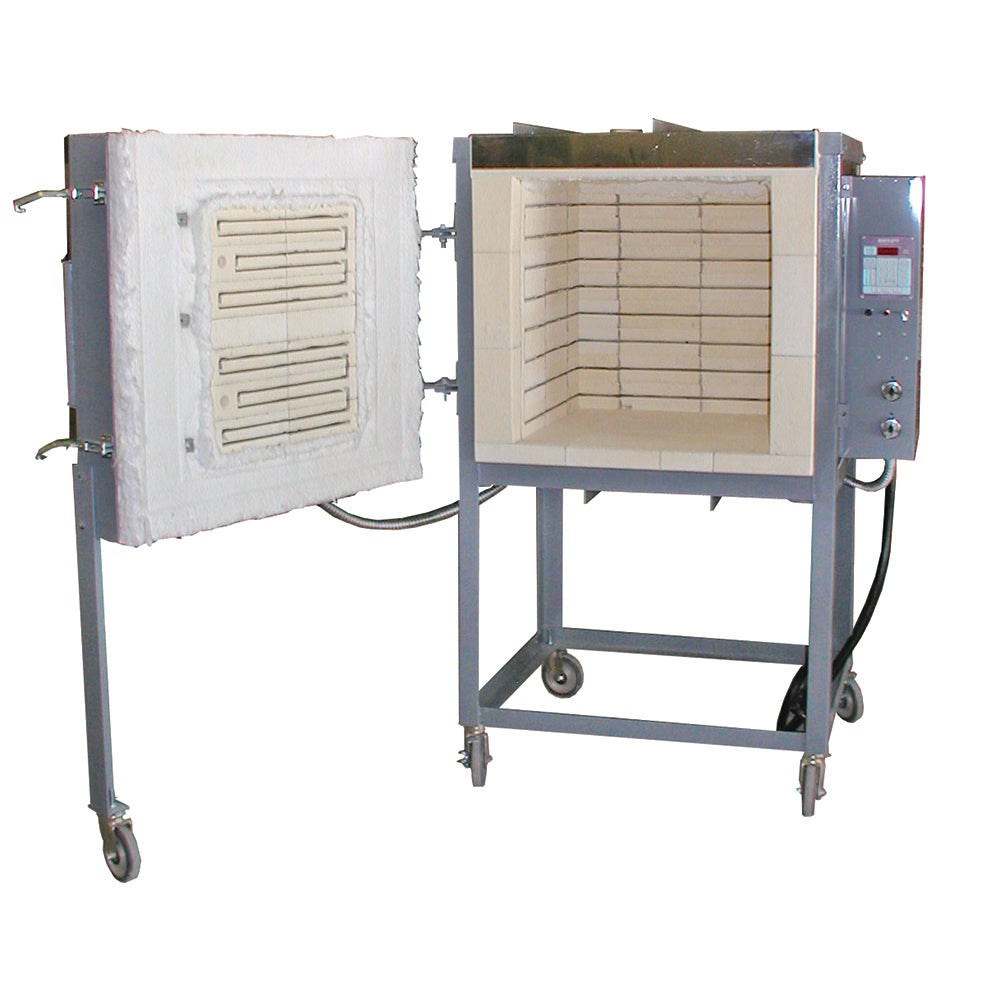

Model – FL8E 240 or 208 volt – Front loading electric kiln with 8 cubic feet inside volume.

Inside Dimensions: 24″ wide x 24″ deep x 24″ high, fires to cone 10/2350°F

Front-loading large capacity production models come equipped with a pilot light, welded heavy angle iron frame, stainless steel jacket, and 12-key digital KilnStar controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The FL8E is equipped with its own breaker box for easy access, safety, and lockout. Additional options include upgrading to the Genesis touchscreen controller, 480 volts, Type S thermocouple, castors, vent, and much more!

Furniture Kits for Large Capacity Kilns provide four layers of shelving, assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model FL8E Wiring Specifications 1 Phase 3 Phase
Car Kiln Option Available No Volts 208 240 208 240
Inside Chamber Dimensions w x d x h (inches)  24 x 24 x 24 Amps 55 48 36 32
Cubic Feet 8 Watts 11,520
Outside Dimensions with Stand or Frame w x d x h (inches) 46 x 45 x 69 Breaker Required 70 Amp 60 Amp 50 Amp 40 Amp
Brick Thickness 4.5” +1″ Fiber Plug Configuration Direct Wired NEMA 6-50 Direct Wired
Maximum Temperature Cone 10 – 2350°F/1288°C Copper Wire Size #6, #4 if the circuit is longer than 40 ft
Est. Shipping Wt. 1,065 lbs.
