Olympic Kilns

Olympic FREEDOM 1823HE Kiln Package

$4,44900
Taxes, discounts and shipping calculated at checkout.

Freedom 1823HE Package – Freedom 1823HE 240 or 208 volt

Inside dimensions: 17.5″ wide x 22.5″ deep, fires to cone 10-2350°F

Freedom Package – Freedom kiln, Furniture Kit, Assorted Stilt Pkg., Freedom Kit-Emergency Repair Kit, VentMaster

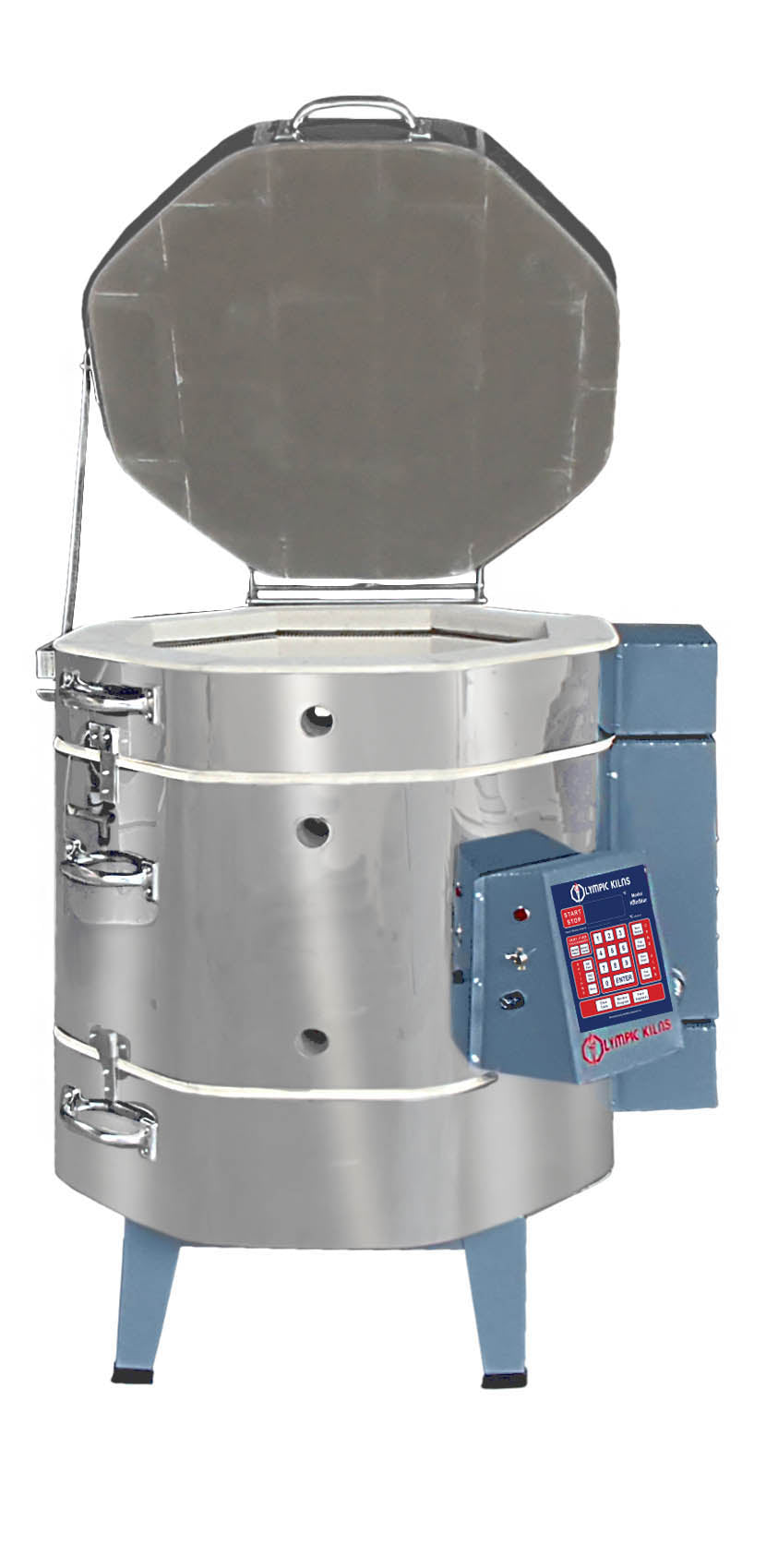

Each Freedom kiln is made of 3″ brick for extra insulation and energy efficiency and fires to cone 10/2350°. Freedom Kilns are equipped with the Bartlett Instruments 12-key digital KilnStar controller, with six ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip-step, and many more for precise firings every time. Messages and information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and using a cone table for easy lookup of temperature and cone number equivalents.

Upgrade to Genesis touchscreen controller for even more user-friendly programming.

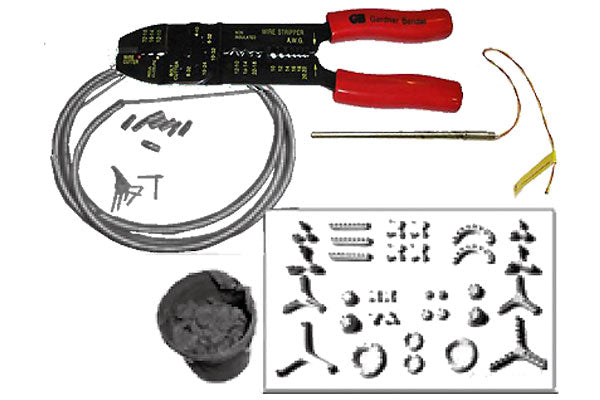

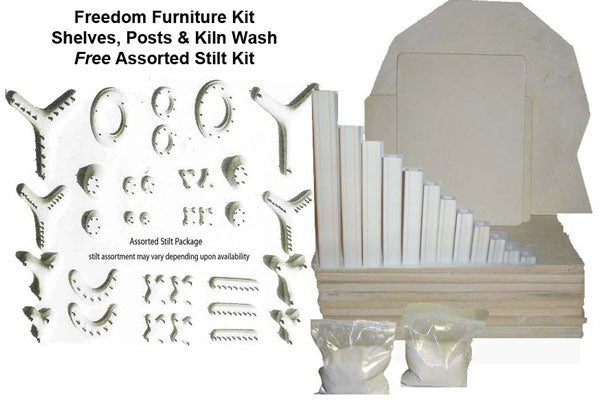

Freedom Kilns 23″ wide or larger are equipped with a lid lift assist which makes opening and closing the kiln smooth and easy. Every Freedom kiln ships with its own Freedom Kit, an emergency repair kit filled with over $200 worth of merchandise, two elements, a thermocouple, a pint of mortar, a crimping tool, and a wiring schematic. Freedom Packages include a Furniture Kit (3-4 layers of shelves, posts, and kiln wash, an Assorted Stilt Kit (with 33 stilts for firing glaze pieces), and a VentMaster for venting your Freedom kiln.

Free Yourself with a Freedom Package! Everything you need to create when you receive your Freedom Package!

Specific Kiln Information

Model Freedom 1823HE Wiring Specifications 1 Phase
Equipped with Lid Lift Assist Optional Volts 208 240
Inside Chamber Dimensions w x d x h (inches) 17.5 x 22.5 Amps  30  26.25
Cubic Feet  3.29 Watts 6,300
Outside Dimensions with Stand or Frame w x d x h (inches)  31.5 x 36.5 Breaker Required  40 Amp
Brick Thickness 3” Plug Configuration  NEMA 6-50
Maximum Temperature Cone 10-2350°F/1288°C Copper Wire Size  #8, #6 if the circuit is longer than 40 ft
Est Ship Wt. 215 lbs.
