Olympic Kilns

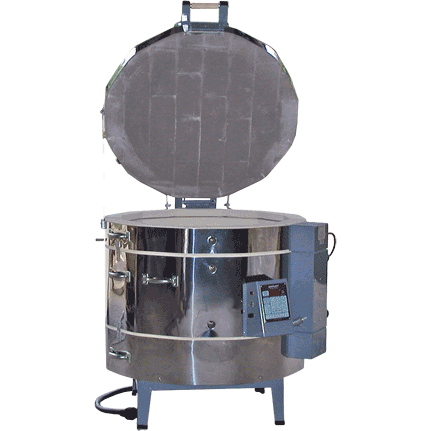

Olympic FREEDOM 2823HE Kiln Package

$6,68000
Taxes, discounts and shipping calculated at checkout.

Freedom 2823HE Package – Freedom 2823HE 240 or 208 volt

Inside dimensions: 28.25″ wide x 22.5″ deep, fires to cone 10-2350°F

Freedom Package – Freedom Kiln, Furniture Kit, Assorted Stilt Pkg., Freedom Kit-Emergency Repair Kit, VentMaster

Each Freedom kiln is made of 3″ brick for extra insulation and energy efficiency and fires to cone 10/2350°. Freedom Kilns are equipped with the Bartlett Instruments 12-key KilnStar digital controller, with six ramp-hold user programs, and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and using a cone table for easy look-up of temperature and cone number equivalents.

Upgrade to Genesis touchscreen controller for even more user-friendly programming.

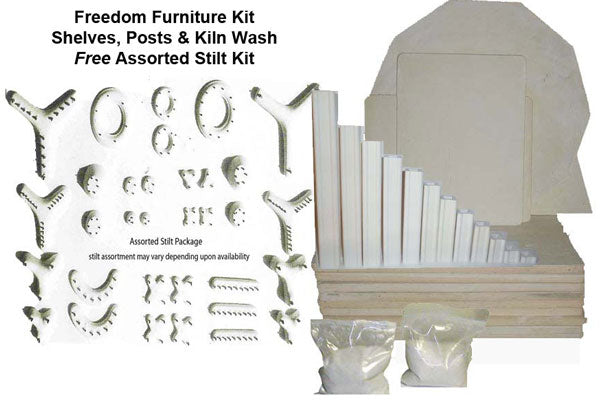

Freedom Kilns 23″ wide or larger are equipped with a lid lift assist which makes opening and closing the kiln smooth and easy. Every Freedom kiln ships with its own Freedom Kit, an emergency repair kit filled with over $200 worth of merchandise, two elements, a thermocouple, a pint of mortar, a crimping tool, and a wiring schematic. Freedom Packages include a Furniture Kit (3 layers of shelving-6 each of 13″ x 26″ x 1″ half round shelves, 6 each of 4, 6, 8, 10-inch large square posts, and a l lb. bag of kiln wash, an Assorted Stilt Kit (with 33 stilts for firing glaze pieces), and a VentMaster for venting your Freedom kiln.

Free Yourself with a Freedom Package! Everything you need to create when you receive your Freedom Package!

Specific Kiln Information

Model Freedom 2823HE Wiring Specifications 1 Phase 3 Phase
Equipped with Lid Lift Assist Yes Volts 208 240 208 240
Inside Chamber Dimensions w x d x h (inches)  28 1/4 x 22.5 Amps 55  48  36 32
Cubic Feet 8.34 Watts 11,520
Outside Dimensions with Stand or Frame w x d x h (inches)  42 x 53 x 42.5 Breaker Required 70 Amp 60 Amp 50 Amp 40 Amp
Brick Thickness 3” Plug Configuration Direct Wired NEMA 6-50 Direct Wired
Maximum Temperature Cone 10 – 2350°F/1288°C Copper Wire Size #6, #4 if the circuit is longer than 40 ft
Est Ship Wt. 565 lbs.
