Olympic Kilns

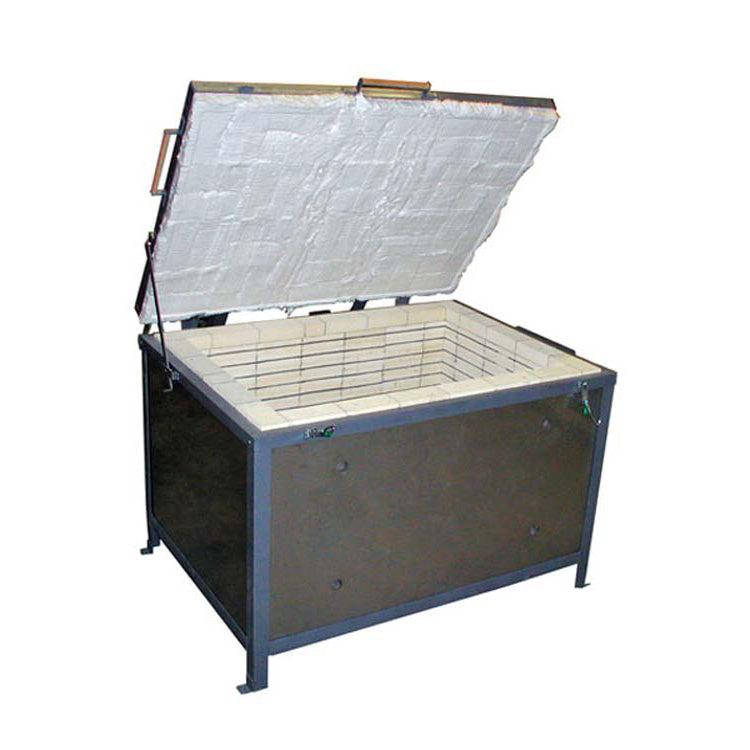

Olympic TL5432E Kiln

$19,83500
Taxes, discounts and shipping calculated at checkout.

Model – TL5432E 240 or 208 volt – Top loading production volume 36 cubic feet electric kiln

Inside Dimensions: 54″ wide x 36″ deep x 32″ high, fires to cone 10/2350°F

The top loading large capacity models come equipped with a pilot light, welded heavy angle frame, stainless steel jacket, and 12 key digital Bartlett KilnStar controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy look up of temperature and cone number equivalents. The TL5432E is equipped with its own breaker box for easy access, safety, and lockout.

Additional options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, and much more!

Furniture Kits for Large Capacity Kilns provide four layers of shelving, assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

Specific Kiln Information

Model TL5432E Wiring Specifications 1 Phase 3 Phase
Inside Chamber Dimensions w x d x h (inches)  54 x 36 x 32 Volts 208 240 208 240
Cubic Feet 36 Amps  173  150 116 100
Outside Dimensions with Stand or Frame w x d x h (inches) 80 x 68 x 47 Watts 36,000
Brick Thickness  4.5” + 1″ Fiber Breaker Required 200 Amp 200 Amp  150 Amp  150 Amp
Maximum Temperature Cone 10 – 2350°F/1288°C Plug Configuration Direct Wired
Est. Shipping Wt. 2,010 lbs. Copper Wire Size #1, #1/0 if the circuit is longer than 40 ft

Shipping Large Equipment with Ruby Clay

Cost of Shipping

In order to ensure that you are not over or under charged for shipping, Ruby Clay will bill you for the cost of shipping your equipment when it is ready to ship. Please ensure that you have entered the correct phone number and email address at check out, so that we can successfully contact you.

Lead Times

Large pieces of equipment like wheels and kilns can take extra time to ship. Below are the manufacturers best estimates on when products will ship after the order is placed. Feel free to email info@rubyclaycompany.com or call us at our shop at 918-551-6664 to ask about lead times on specific equipment.

Skutt Ceramic Products - 8 weeks

Cress Kilns- 4 weeks

Shimpo Ceramics-

Olympic Kilns- 12-15 weeks, with the exception of the models listed as “quick ships.”

Returns

Ruby Clay Company does not accept unsolicited or unauthorized returns. If you have a return please contact info@rubyclaycompany.com. Please keep all of the packing materials for your piece of equipment as the manufacturer may not accept your return if it is not in the original packaging. If you need to cancel your order please email info@rubyclaycompany.com immediately.
